1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name : SOUTH

Model Number : V2/S1

Place of Origin : China

MOQ : 1 piece

Price : $4,200.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver SOUTH V2/S1

Customized support : OBM, ODM, OEM

Material : magnesium alloy

Power : lithium battery

Working time : 18 hours(mobile network mode)

channels : 1598

GPS : L1C/A, L2C, L2P, L5

Signal recapture : 1s

Contact Now

1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Description

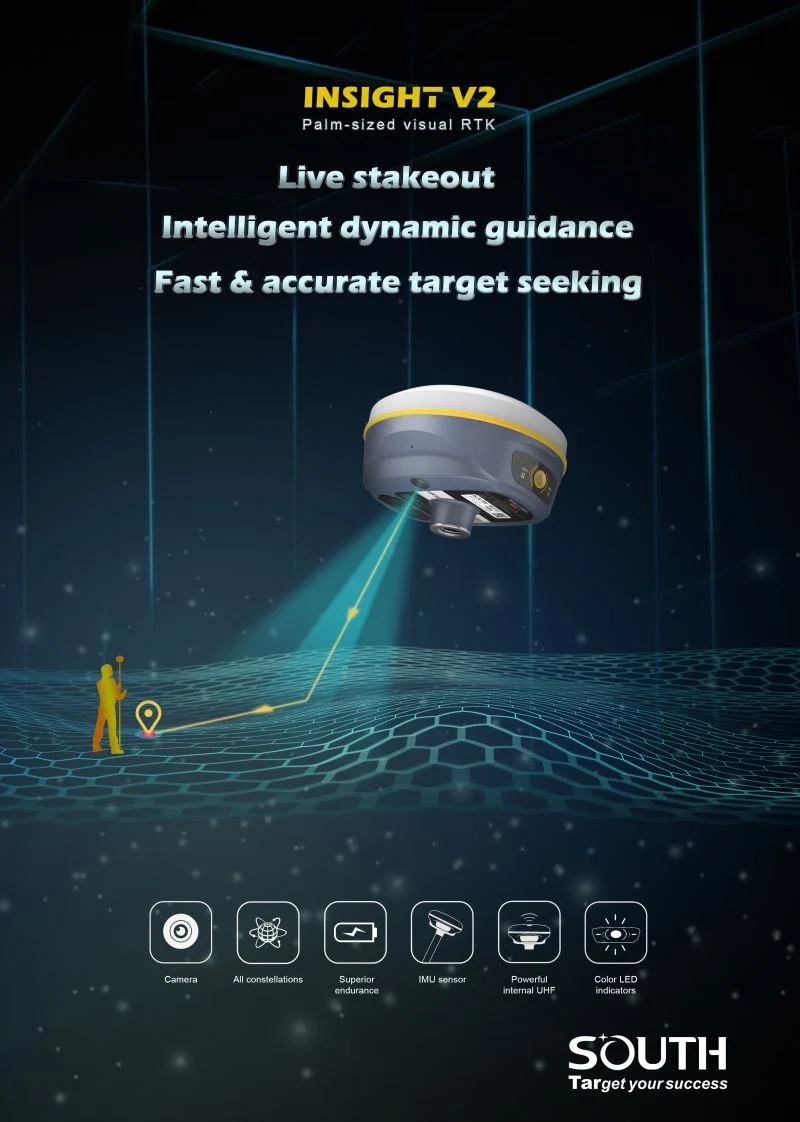

1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
1598 channels SOUTH Insight V2/S1 RTK Surveying Equipment High Accuracy Gps Receiver
Product Details

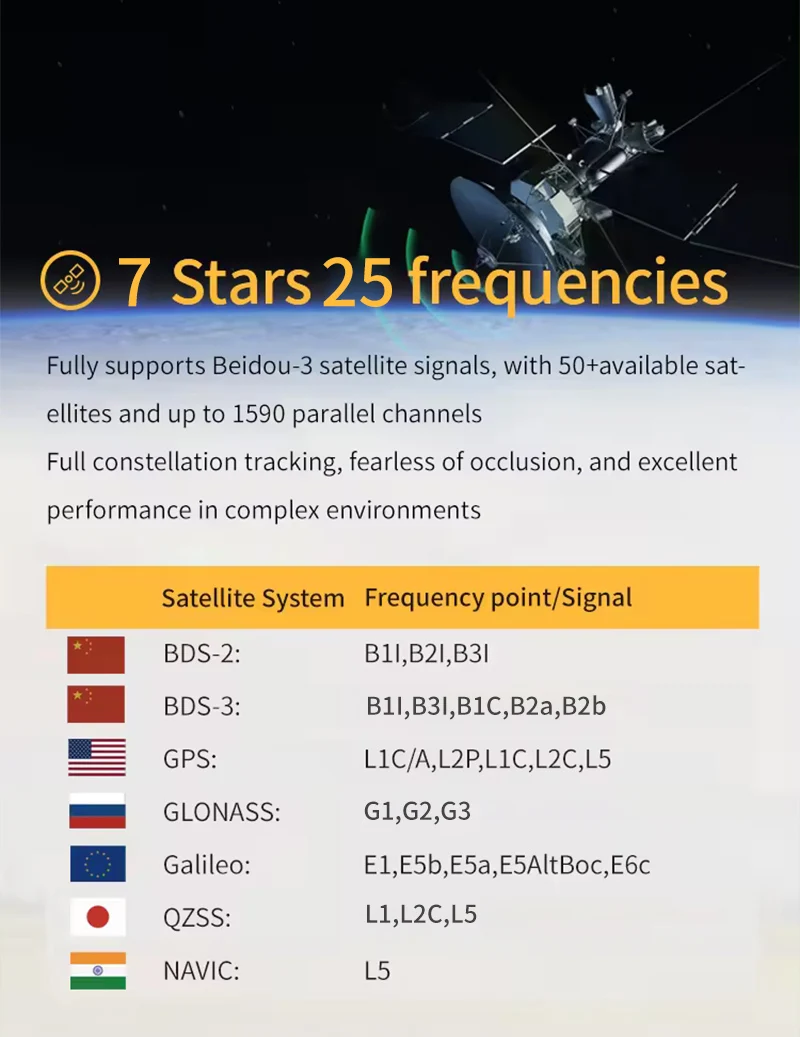

GNSS Features
Channels
1598
GPS
L1C/A, L2C, L2P, L5
GLONASS
L1C/A, L1P, L2C/A, L2P
BDS
B1, B2, B3
GALILEO
E1, E5A, E5B, E5AltBOC*, E6
SBAS
L1C/A, L5 (Just for the satellites supporting L5)
IRNSS
L5
QZSS
L1C/A, L2C, L5
L-Band
BDS-PPP, GALILEO-HAS*
Positioning output rate
1Hz~20Hz
Initialization time
< 10s
Initialization reliability
> 99.99%
Positioning Precision
Code Differential GNSS Positioning
Horizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS
GNSS Static
Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
Static (long observations)
Horizontal: 2.5mm+0.1 ppm RMS
Vertical: 3mm+0.4 ppm RMS
Real-Time Kinematic
(Baseline<30km)
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
RTK NTRIP
Horizontal: 8mm+0.5 ppm RMS
Vertical: 15mm+0.5 ppm RMS
PPK
Horizontal: 3mm+1 ppm RMS
Vertical: 5mm+1 ppm RMS
SBAS positioning
Typically < 5m 3DRMS
RTK initialization time
< 10s
IMU tilt compensation
Additional horizontal pole tip uncertainty typically less than 8mm + 0.7 mm/°tilt down to 30°, 1.8m pole height
IMU tilt angle
0° ~ 60°
Hardware Performance
Dimension
131mm(φ)× 80mm(H)
Weight
800g (battery included)
Material
Magnesium aluminum alloy shell
Operating temperature
-45℃ ~ +75℃
Storage temperature
-55℃ ~ +85℃
Humidity
100% Non-condensing
Waterproof/Dustproof
IP68 standard, protected from long time immersion to depth of 2m
IP68 standard, fully protected against blowing dust
Shock/Vibration
Withstand 2 meters pole drop onto the cement ground naturally
Power consumption
4W
Power supply
6-28V DC, overvoltage protection
Battery
Built-in 7.4 V 6800mAh rechargeable
Lithium-ion battery
Battery life
16h (static mode)
10h (internal UHF base mode)
12h (rover mode)

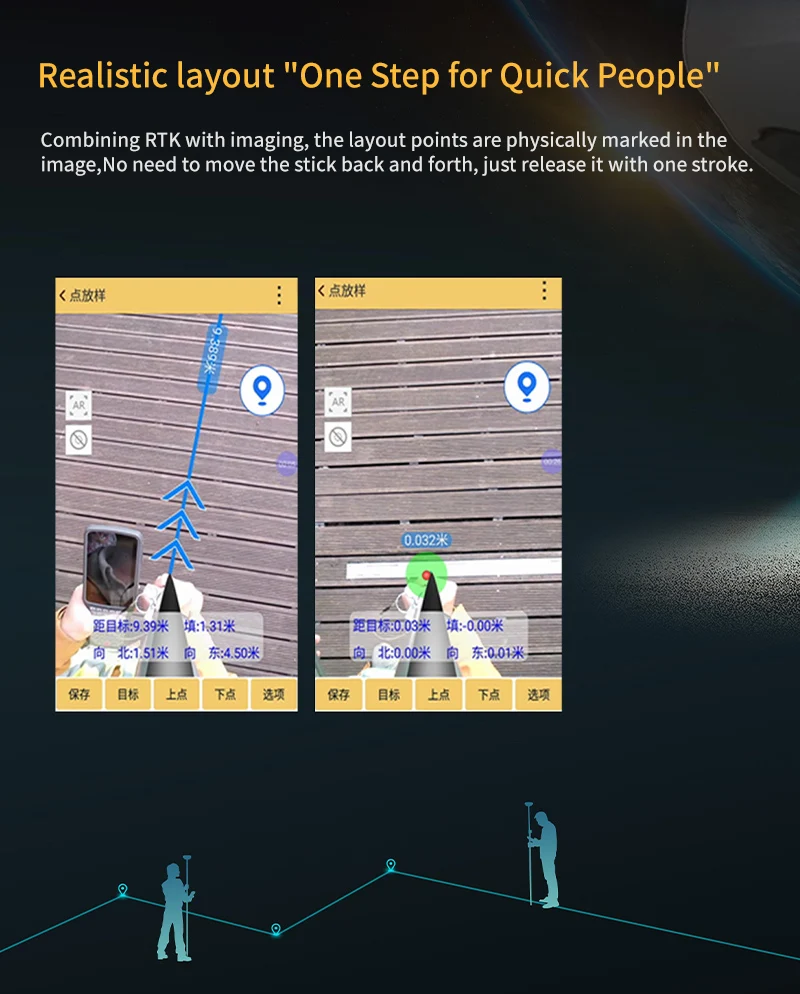

Camera
2 MP
FOV
75°
WIFI
Modem
802.11 b/g standard
WIFI hotspot
Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
WIFI datalink
Receiver can transmit and receive correction data stream via WiFi datalink
Communications
I/O Port
UHF antenna interface
Type-C
Internal UHF
2W radio receiver and transmitter
Frequency range
410 - 470MHz
Communication protocol
Farlink, Trimtalk450s, SOUTH, HUACE, ZHD
Communication range
Typically 8km with Farlink protocol
Bluetooth
BLEBluetooth 4.2 standard, Bluetooth 2.1 + EDR
NFC Communication
Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless
communication module else)
Data Storage/Transmission
Storage
4GB SSD internal storage standard, extendable up to 32GB
Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
Support external USB storage
Data transmission
The customizable sample interval is up to 20Hz (Reserve)
Plug and play mode of USB data transmission
Supports FTP/HTTP data download
Data format
Static data format: STH, Rinex2.01, Rinex3.02 and etc.
Differential data format: RTCM 2.x, RTCM 3.x
GPS output data format: NMEA 0183, PJK plane coordinate, Binary code
Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors
Electronic bubble
Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
IMU
Built-in IMU module, calibration-free and immune to magnetic interference
Thermometer
Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver
temperature
User Interaction
Operating system
Linux
Buttons
Single button
Indicators
3 color LED indicators, and Battery indicator
Web interaction
With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status
and change the configurations freely
Voice guidance
The intelligent voice technology provides status and operation voice guidance, supports
Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
Secondary development
Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition

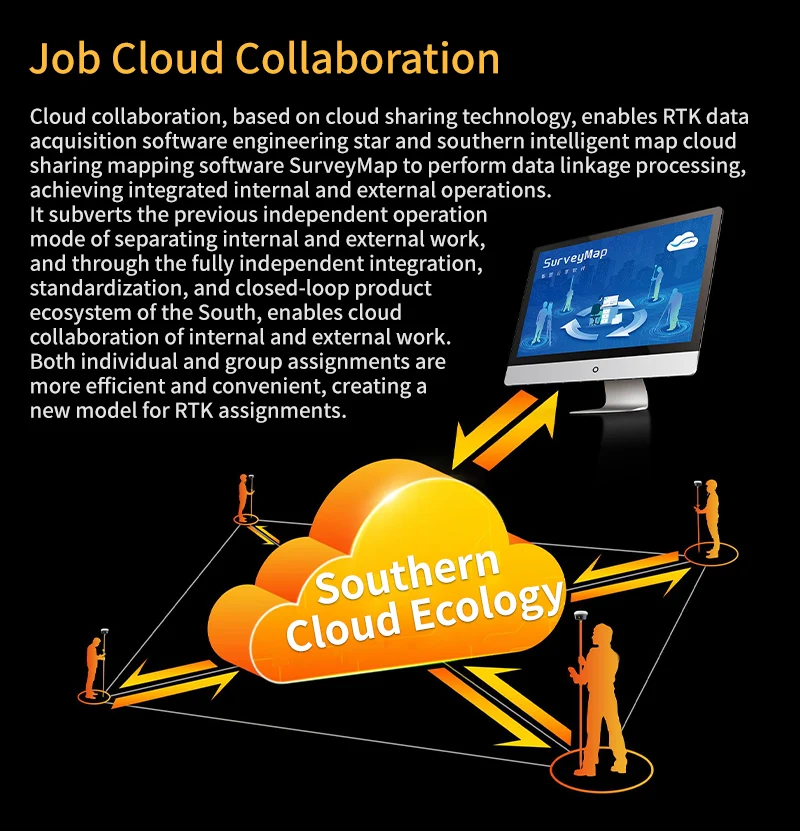

Cloud service
The powerful cloud platform provides online services like rem
