CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk

Brand Name : CHCNAV

Model Number : X15

Place of Origin : China

MOQ : 1 piece

Price : $2,100.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver

Frequency : 1408 channels

GPS : L1C/A,L1C,L2C,L2P,L5

Galileo : E1,E5a,E5b,E6*

QZSS : L1C/A,L1C,L2C,L5

BDS : B1I,B2I,B3I,B1C,B2a,B2b*

Supports : WIFI

Internal battery life : Static 16hours

Application : full-wave

Weight : 725g

Contact Now

Product Paramenters
TECHNICAL PARAMETER
project
content
index
Satellite tracking
Satellite system
GPS+BDS+Glonass+Galileo+QZSS
Support Beidou three generations, support Five star 21 frequency point
Satellite tracking
BDS: B1I,B2I,B3I,B1C,B2a,B2b*
GPS: L1C/A,L1C,L2C,L2P,L5
GLONASS: G1,G2,G3
Galileo: E1,E5a,E5b,E6*
QZSS: L1C/A,L1C,L2C,L5
IRNSS: L5*
SBAS: L1C/A*
Channel
1408
Initialization reliability
99.99%
No network continued test
support
Signal acquisition sensitivity
Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy
Static accuracy
Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
Elevation accuracy:±(5mm + 0.5×10-6×D)mm
RTK accuracy
Planar accuracy:±( 8mm + 1×10-6×D)mm
Elevation accuracy:±(15mm + 1×10-6×D)mm
Tilt compensation accuracy
8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
Video measurement accuracy
Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation
IMU update rate
200Hz
Tilt Angle
0-60°
Insensitive super inertial navigation
No initialization is required, the INS will not exit after initialization
User interaction
Pilot lamp
1 satellite light +1 differential data light +1 static indicator light +1 power light
key
Static switch button + Power/Confirm button
web page
Support PC/ mobile web page

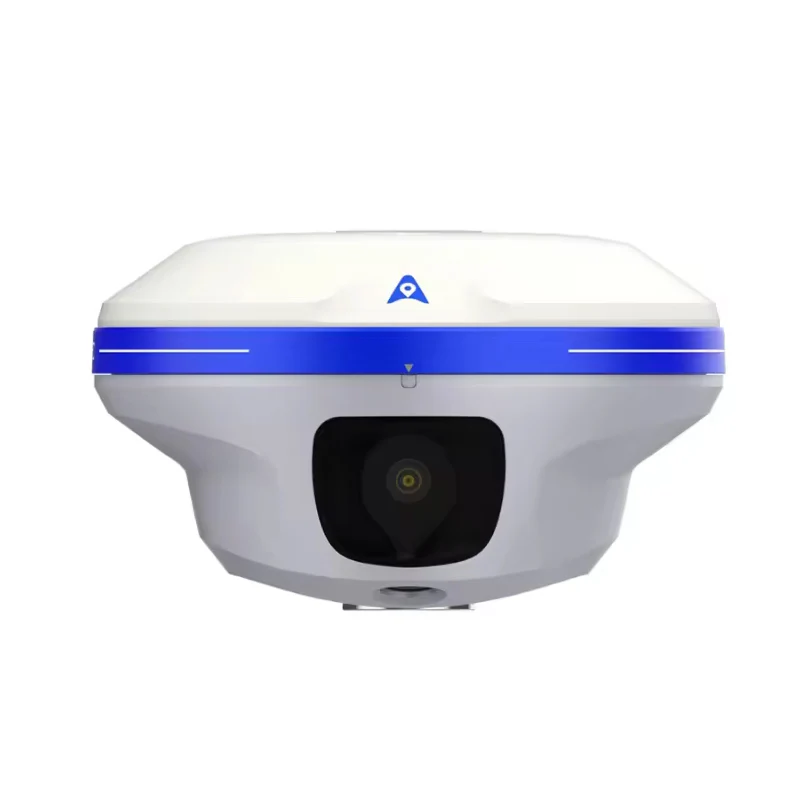

camera
Characteristic function
Video measurement, efficiency increase by 60%*
3D modeling, double the efficiency of internal and external work *
AR real navigation, put a point not lost
Visual lofting, one stick in place
pixel
2MP&5MP
Frame rate
25Hz
Field of view (H, V)
75°,75°
illuminance
Starlight camera, OmniPixel 3-GS technology
Full color picture at 0.01lux
Physical characteristics
dimension
Φ133.5mm*80mm
weight
725g (battery included)
material
Magnesium alloy
Operating temperature
-45℃~+75℃
Storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 (30 minutes underwater 1 meter immersion)
anticollision
IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
anti-condensation
100%

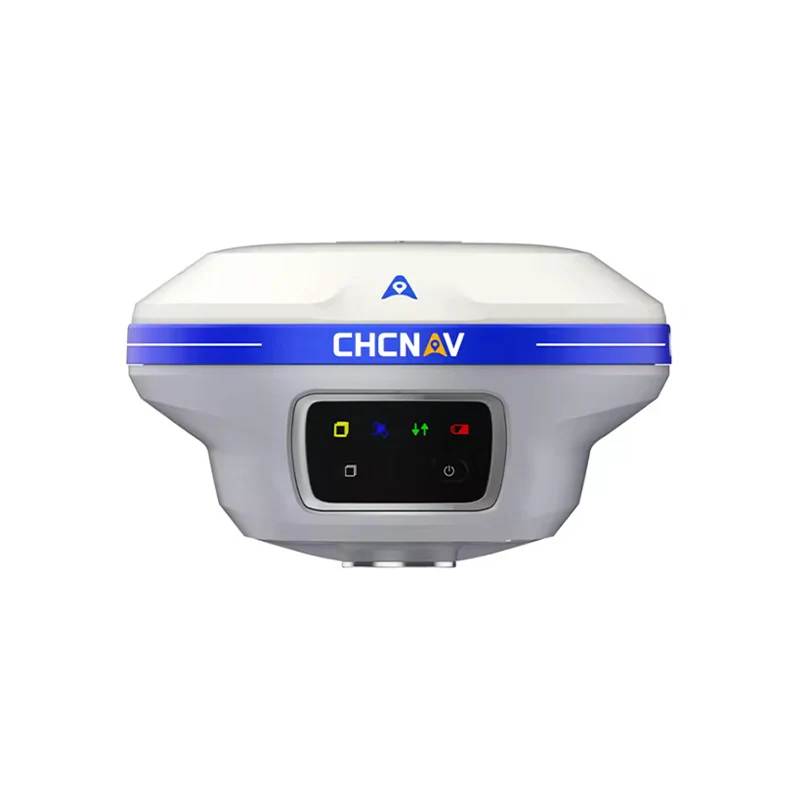

Product Display
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
Certifications

CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk
Company Profile
CHC X15/I89 Gnss Rtk Surveying Gnss Receiver High Accuracy Gps Gnss Receiver Rtk

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
