1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Product Categories
Chengdu Jiebo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name : CHCNAV

Model Number : I73/E300

Place of Origin : China

MOQ : 1 piece

Price : $2,800.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : GNSS RTK Receiver CHCNAV I73/E300

Customized support : OEM, ODM, OBM

Internal battery life : Static 12hours

Weight : 1.5kg

Data Storage : 8G internal storage

channels : 1408

Application : land surveying

GPS : L1 ,L2, L5

Contact Now

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

project
content
parameter
Receiver characteristics
satellite tracking
GPS+BDS+Glonass+Galileo+QZSS, supports the third generation of Beidou, supports five-star 16-band
number of channels
1408 channels
operating system
LINUX system
Initialization time
<5s (typ.)
Initialization reliability
>99.99%
Receiver appearance
button
1 dynamic/static switch key, 1 power key
Indicator light
1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy
Static accuracy
Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
Elevation accuracy: ±(5+0.5×10-6×D) mm
RTK accuracy
Plane accuracy: ±(8 + 1×10-6×D) mm
Elevation accuracy: ±(15+ 1×10-6×D) mm
Single machine accuracy
1.5m
Code difference accuracy
Plane accuracy: ±(0.25 + 1×10-6×D) m
Elevation accuracy: ±(0.5+ 1×10-6×D) m
Electrification parameters
Battery
Built-in 6800mAh lithium battery, supports 15 hours battery life of mobile station
External power supply
Support USB port external power supply
Physical properties
Size (L*W*H)
119mm*119mm*85mm
weight
0.73kg
Material
Magnesium alloy AZ91D body
Operating temperature
-45℃~+75℃
storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 level
Shock vibration
IK08 level
Anti-drop
Resistance to free fall of 2 meters
Data output
Output format
NMEA 0183, binary code
output method
BT/Wi-Fi/Radio
Static storage
storage format
Can directly record HCN, HRC, RINEX
storage
Standard 8GB built-in storage
Download method
Universal USB data download; HTTP download
Data communication
I/O interface
1 external UHF antenna interface
1 USB-TypeC interface, support charging, power supply, data download
Network module
Handbook supports 4G full Netcom
Radio station
Built-in high-frequency 450-470MHz single-receiving radio
Blue tooth
BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
data transmission
Wi-Fi data link
Wi-Fi
802.11 b/g/n
NFC
Support NFC flash connection
Receiver function
Super double collection
Support radio + network two-way data differential at the same time, provide comprehensive data services
One-click matching
Support handbook software to match base station data with one key
Handbook parameters
model
HCE600 Android Measuring Handbook
The internet
4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic
operating system
Android 10
CPU
Eight-core 2.0Ghz processor
LCD screen
5.5'' HD display
Battery
14 hours of battery life
Three defenses
IP68

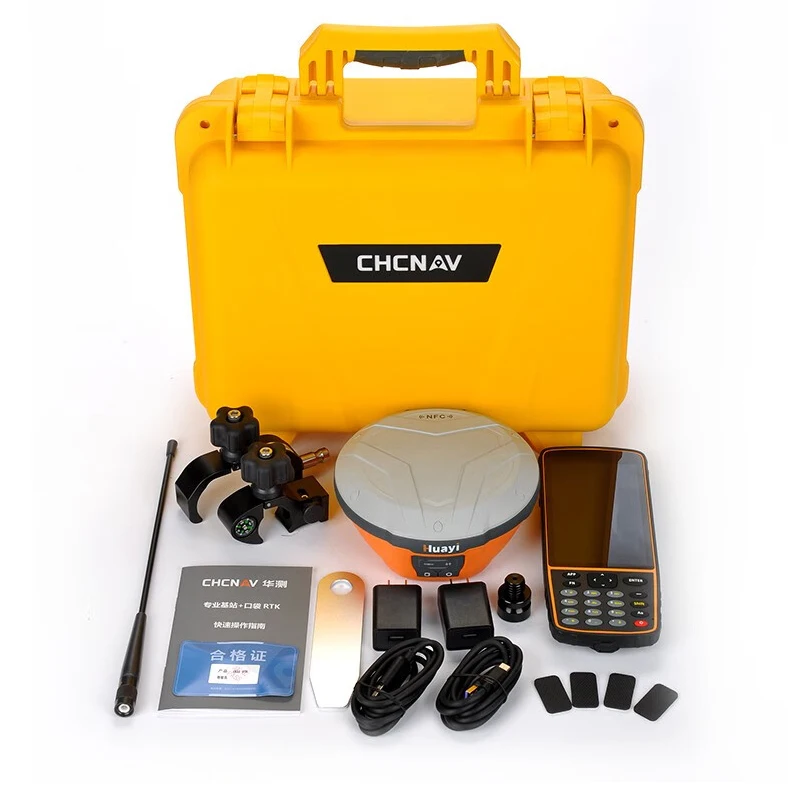

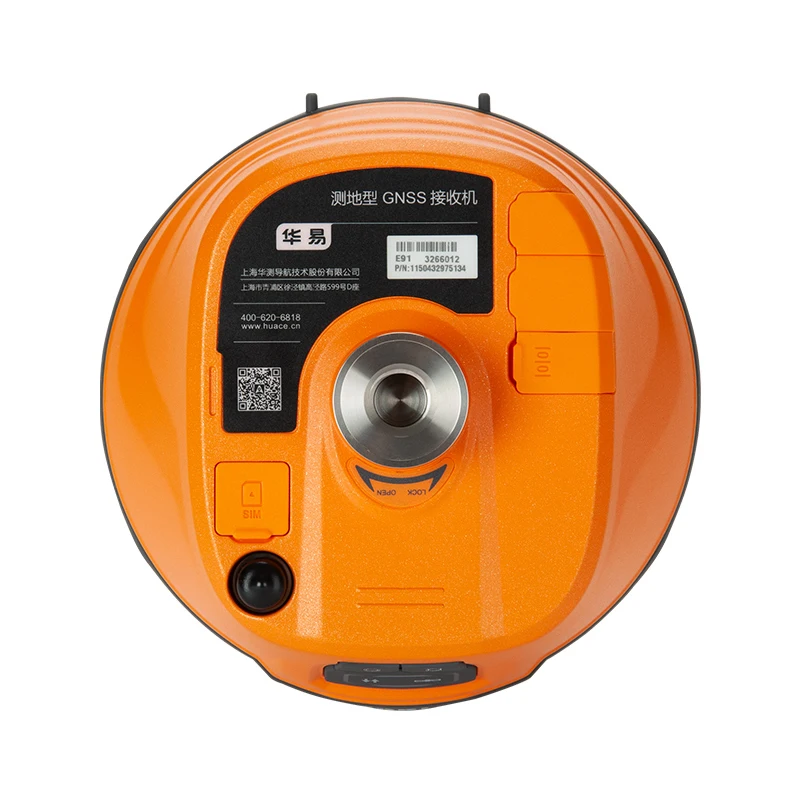

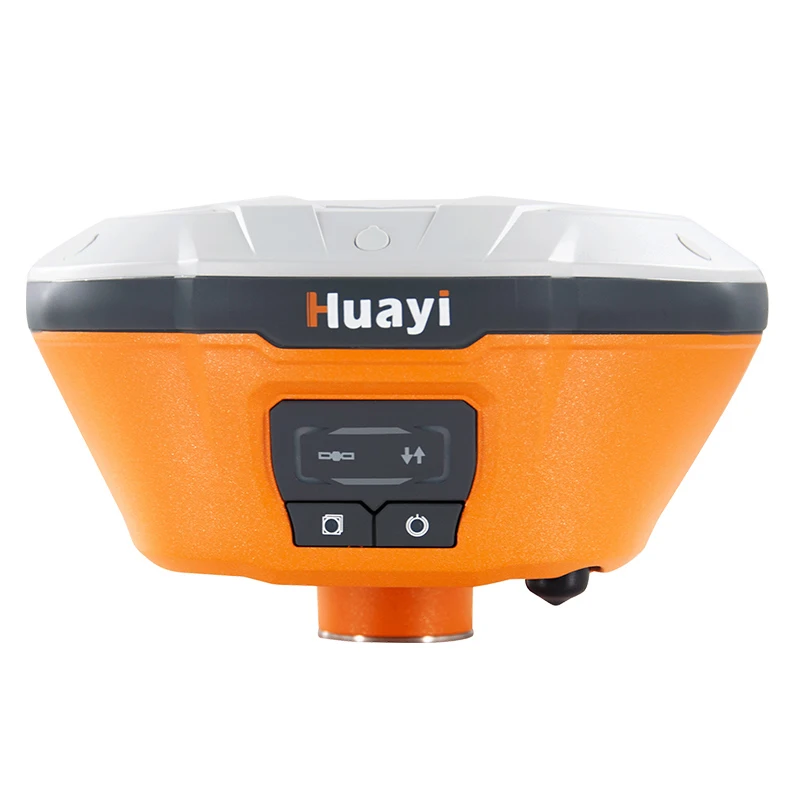

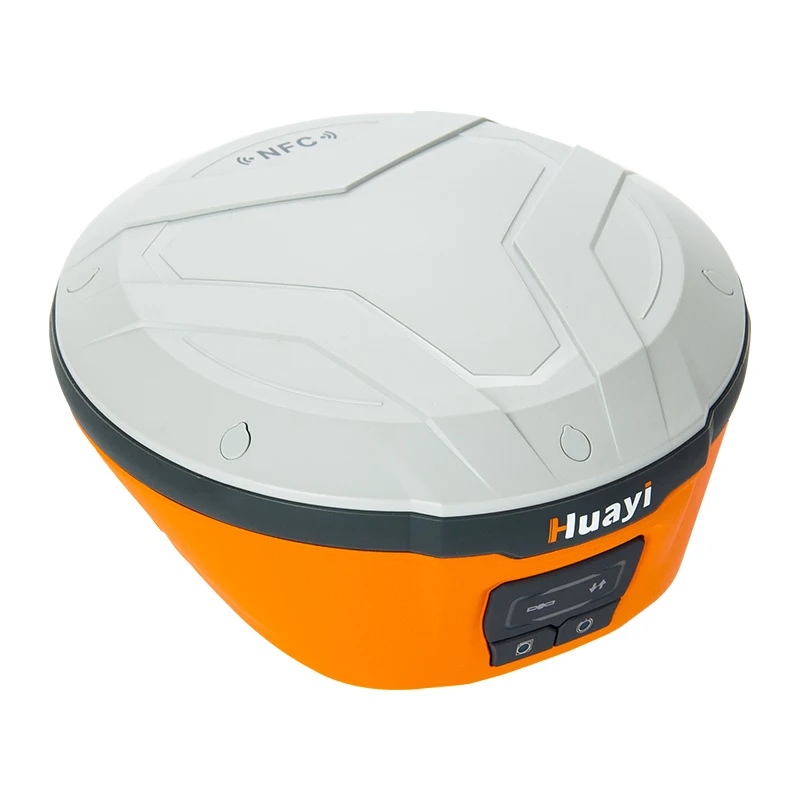

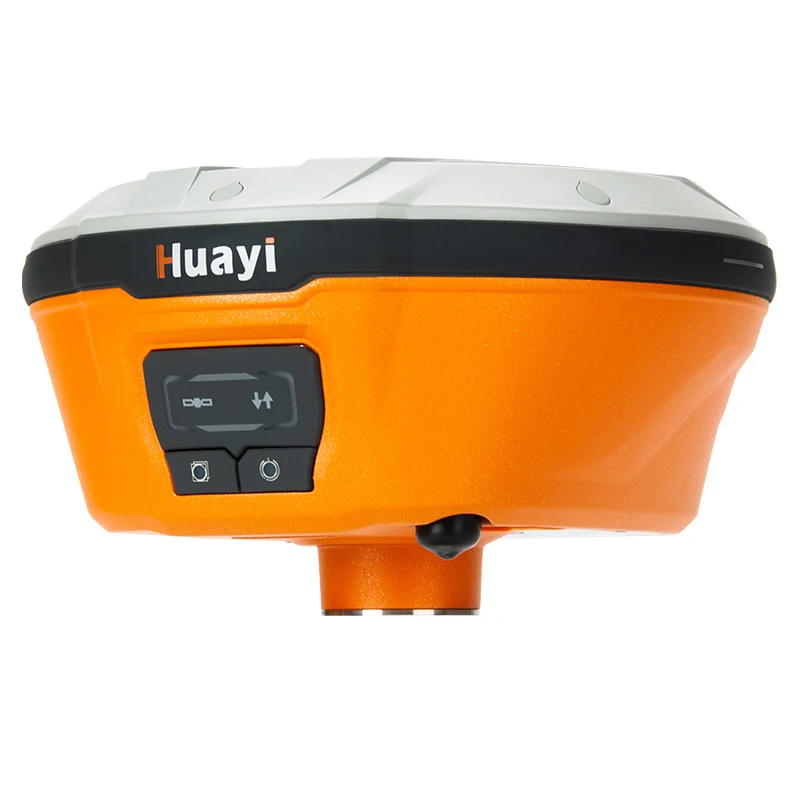

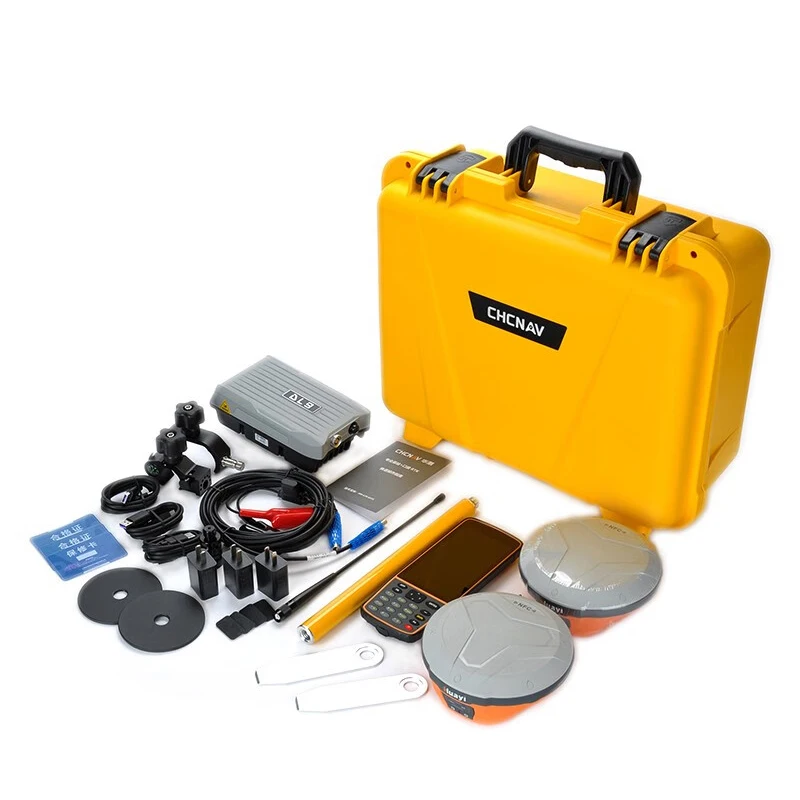

Product Display
