1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver

Product Categories
Chengdu Jiebo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name : CHCNAV

Model Number : E96

Place of Origin : China

MOQ : 1 piece

Price : $1,600.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : GNSS RTK Receiver CHCNAVE96

Customized support : OEM, ODM, OBM

Application : Land Surveying

Function : GPS RTK Survey (Radio

GPS : L1C/A, L1C, L2C, L2E, L5

channels : 1408

BDS : B1, B2, B3

GLONASS : L1C/A, L1P, L2C/A, L2P, L3

Contact Now

1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

project
content
index
Satellites and Accuracy
satellite system
GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
number of channels
1408
Initialize reliability
99.90%
No network continued test
Support high-precision solution, the base station can publish data such as power information
Signal capture sensitivity
Typical value -162dbm, stronger ability to capture weak signal
satellite-based differential
Support L-Band function:
(optional)
Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
Support domestic satellite-based enhanced services (centimeter level)
Support ground-based augmentation system differential services (centimeter level)
Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2]
IMU update rate
200Hz
slope
0-60 degrees
super inertial navigation
Support travel process to complete initialization, and support centering rod calibration
User interaction
indicator light
1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
button
Static toggle key + power/confirm key
web page
Support PC/mobile web pages
Camera
Function
Support visual stakeout
pixel
2MP
frame rate
25Hz
Field of View (H, V)
75°, 75°
Illumination
Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties
size
Φ133mm*87.6mm
weight
0.8 Kg (including battery)
material
magnesium alloy
Operating temperature
-45℃~+75℃
storage temperature
-55℃~+85℃
waterproof breathable membrane
Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
Waterproof and dustproof
IP68 (Protection against 1 meter immersion in water for 30 minutes)
anti-collision
IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties
Battery
Built-in 6600mAh lithium battery
The typical battery life of the mobile station is more than 16h
fast charge
Support fast charge, up to 24w fast charge
Built-in storage
8GB, can support external expansion 128G, automatic cycle storage, disk
After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output
Differential data
RTCM2.X, RTCM3.X, CMR, CHC516
positioning data
NMEA-0183
static data
HCN, RINEX 2.11, RINEX3.02
data communication
wireless connection
Support Wi-Fi data link
network module
Handbook supports 4G full Netcom
radio
Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features
One-click fix
Comes with a CORS account, which can be fixed at startup
Smart service
Support CTI cloud service, provide cloud storage, function code sharing
control handbook
model
HCE600 Android Measurement Handbook
operating system
Android 10
CPU
Octa-core 2.0GHz processor
network
4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
Operating temperature
-30℃-+60℃
Storage temperature
-40℃-+80℃
Waterproof and dustproof
IP68

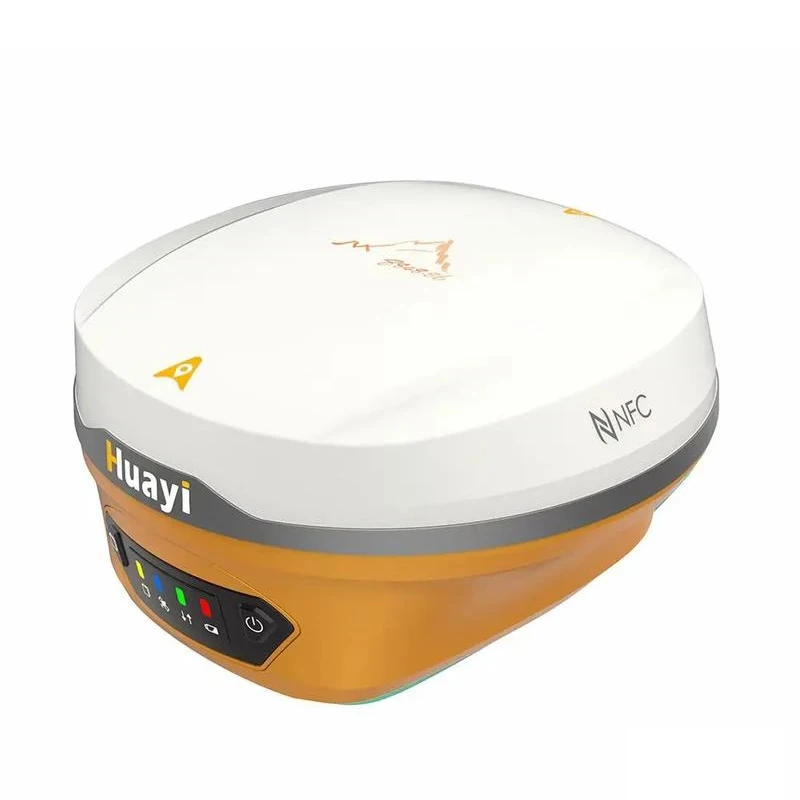

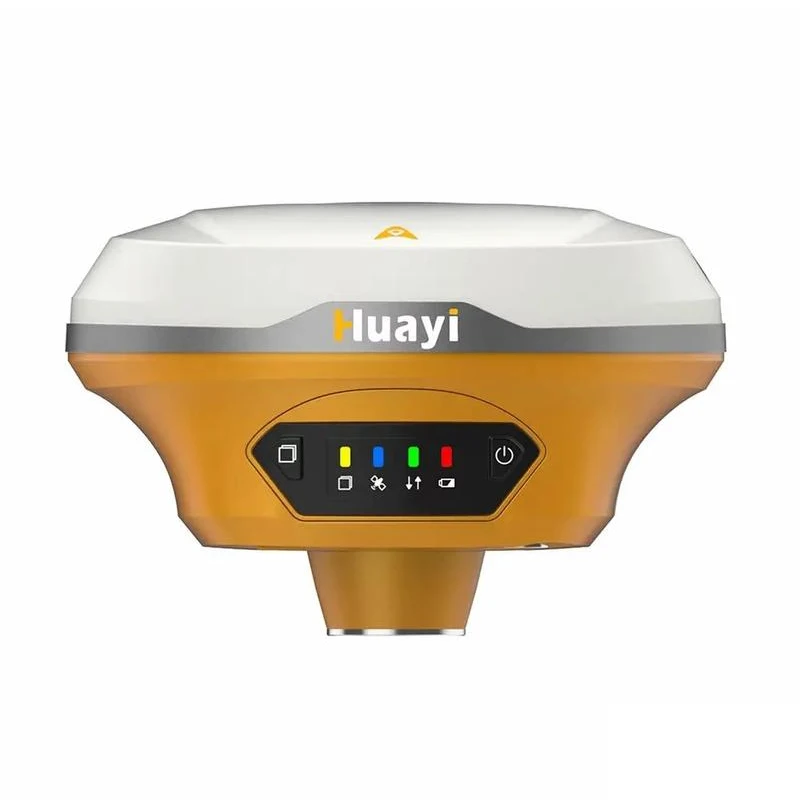

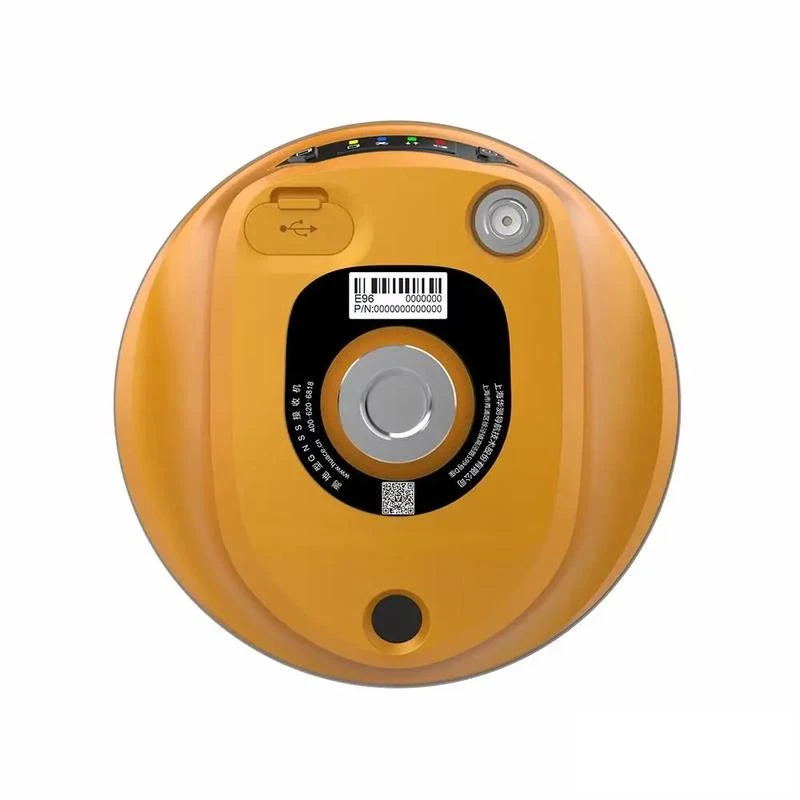

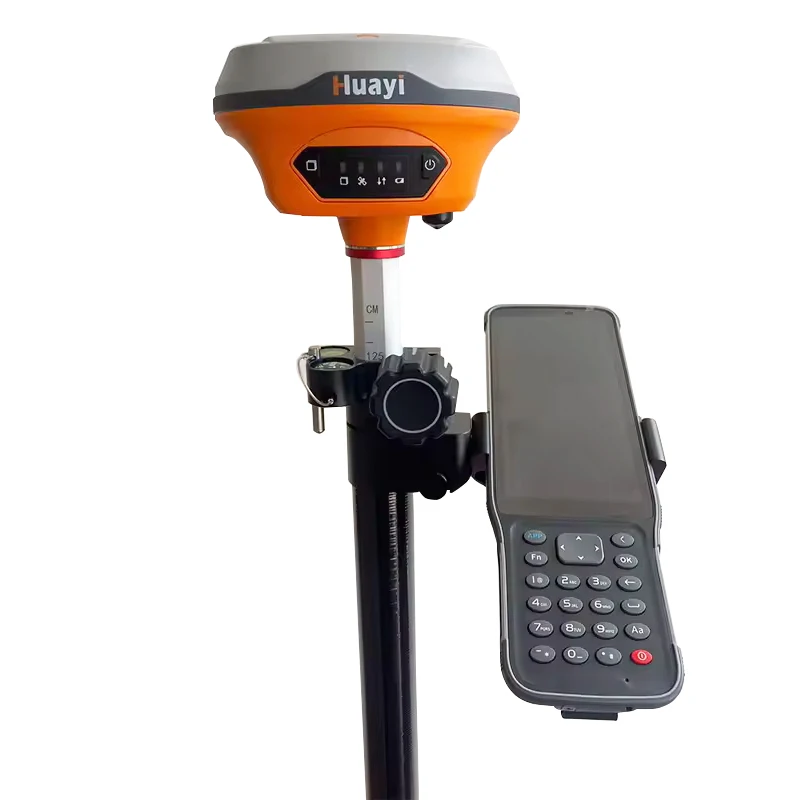

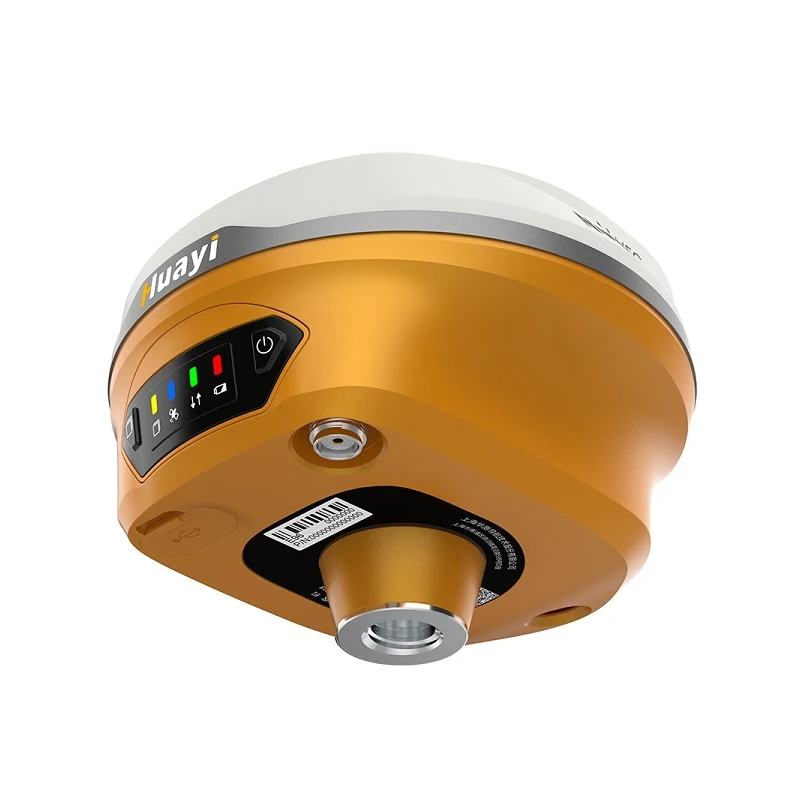

Product Display
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver
