Galileo Satellite CHC IMU I86 RTK GNSS GPS Receiver rover 200Hz

Name: Galileo Satellite CHC IMU I86 RTK GNSS GPS Receiver rover 200Hz
Brand: CHCNAV
Price: 4 USD

China Galileo Satellite CHC IMU I86 RTK GNSS GPS Receiver rover 200Hz wholesale

Brand Name : CHCNAV

Model Number : i86 rover & B5 base

Place of Origin : China

MOQ : 1 piece

Price : $4,500.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver

Frequency : 1408 channels

GPS : L1C/A,L1C,L2C,L2P,L5

Galileo : E1, E5A, E5B, E5AltBOC, E6

QZSS : L1C/A, L1C, L2C, L2E, L5

BDS : B1, B2, B3

Working range : 5km typical, 8~10km optimal

Application : full-wave

Transmitting power : 0.5W, 1W, 2W adjustable

Internal battery life : Static 25hours

Waterproof and dustproof : IP68

Contact Now

1408 Channels cheap price newest Version CHC iMU Function GNSS RTK Receiver i86 GPS RTK

Product Paramenters

i86 rover
project	content	index
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
	Satellite system	Support Beidou three generations, support Five star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2P,L5
		GLONASS: G1,G2,G3
		Galileo: E1,E5a,E5b,E6*
		QZSS: L1C/A,L1C,L2C,L5
		IRNSS: L5*
		SBAS: L1C/A*
	Channel	1408
	Initialization reliability	99.99%
	No network continued test	support
	Signal acquisition sensitivity	Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy	Static accuracy	Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
	Static accuracy	Elevation accuracy:±(5mm + 0.5×10-6×D)mm
	RTK accuracy	Planar accuracy:±( 8mm + 1×10-6×D)mm
	RTK accuracy	Elevation accuracy:±(15mm + 1×10-6×D)mm
	Tilt compensation accuracy	8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60°
	Insensitive super inertial navigation	No initialization is required, the INS will not exit after initialization
User interaction	Pilot lamp	1 satellite light +1 differential data light +1 static indicator light +1 power light
	key	Static switch button + Power/Confirm button
	web page	Support PC/ mobile web page
camera	Characteristic function	Video measurement, efficiency increase by 60%*
		3D modeling, double the efficiency of internal and external work *
		AR real navigation, put a point not lost
		Visual lofting, one stick in place
	pixel	2MP&5MP
	Frame rate	25Hz
	Field of view (H, V)	75°,75°
	illuminance	Starlight camera, OmniPixel 3-GS technology
	illuminance	Full color picture at 0.01lux
Physical characteristics	dimension	Φ133.5mm*80mm
	weight	725g (battery included)
	material	Magnesium alloy
	Operating temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 (30 minutes underwater 1 meter immersion)
	anticollision	IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
	anti-condensation	100%

B5 upgrade base
project	content	parameter
Receiver characteristics	satellite tracking	GPS+BDS+Glonass+galileo+QZSS, support Beidou third-generation satellites, support five-star sixteen-frequency
	operating system	LINUX operating system
	number of channels	1408 channels
	Initialization time	<5s (typ.)
	Initialize reliability	>99.99%
Receiver appearance	button	1 dynamic/static switch key, 1 power key
Receiver appearance	indicator light	1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy	static precision	Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
	static precision	Elevation accuracy: ±(5+0.5×10-6×D) mm
	RTK accuracy	Plane Accuracy: ±(8 + 1×10-6×D) mm
	RTK accuracy	Elevation accuracy: ±(15+ 1×10-6×D) mm
	Stand-alone accuracy	1.5m
	Code differential accuracy	Plane Accuracy: ±(0.25 + 1×10-6×D) m
	Code differential accuracy	Elevation accuracy: ±(0.5+ 1×10-6×D) m
GNSS+Inertial Navigation	IMU	200Hz
	slope	0~60°
	Tilt compensation accuracy	10mm+0.7mm/°tilt (accuracy within 30°<2.5cm)
Electrification parameters	Battery	Built-in 6800mAh lithium battery, support 15 hours battery life of mobile station
Electrification parameters	External power supply	Support external power supply via USB port
physical properties	Size (LWH)	119mm119mm85mm
	weight	0.73kg
	Material	Magnesium alloy AZ91D body
	Operating temperature	-45℃~+75℃
	storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 class
	shock shock	IK08 class
	Anti-drop	Resist 2 meters free fall
data output	output format	NMEA 0183, binary code
data output	output method	BT/Wi-Fi/Radio
static storage	storage format	Can directly record HCN, HRC, RINEX
	storage	Standard 8GB built-in storage
	Download method	Universal USB data download; HTTP download
data communication	I/O interface	1 external UHF antenna port
	I/O interface	1 USB-TypeC interface, support charging, power supply, data download
	network module	Handbook supports 4G full Netcom

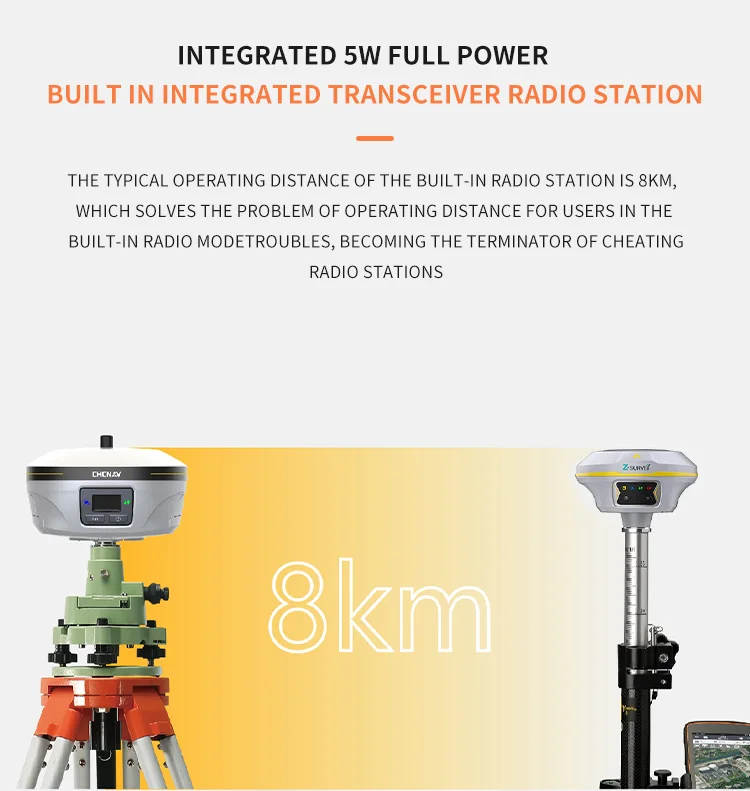

	Radio station	Built-in high frequency 450-470MHz single receiver radio
	protocol	CTI protocol, transparent transmission, TT450
	Blue tooth	BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
	data transmission	Wi-Fi data link
	Wi-Fi	802.11 b/g/n

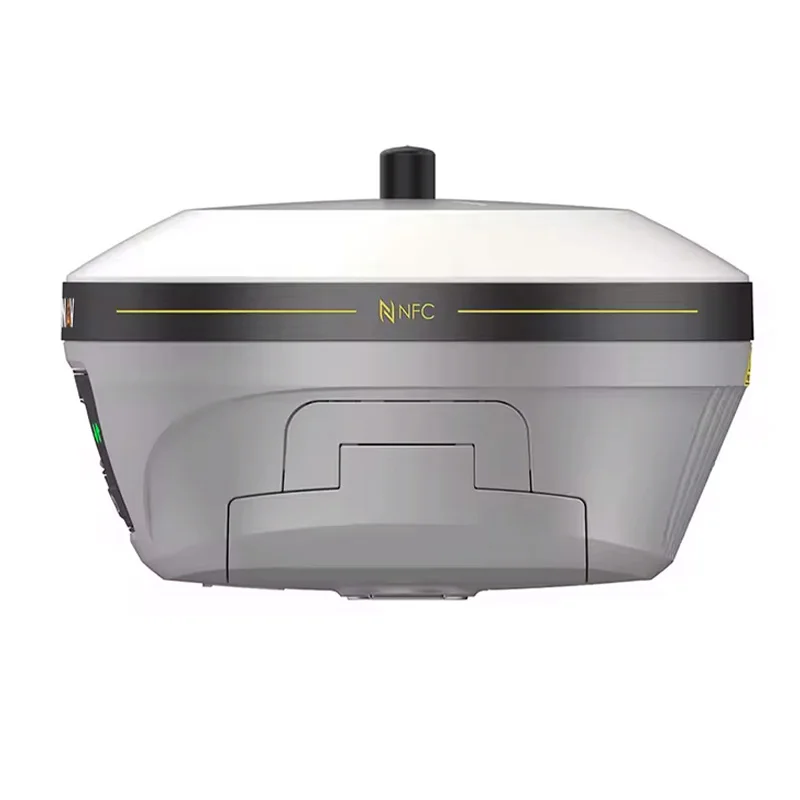

	NFC	Support NFC flash connection
Receiver function	super double	Support radio + network two-way data differential at the same time, provide comprehensive data services
	One-click match	Support handbook software to match base station data with one key
	Remote upgrade	Support one-key remote upgrade

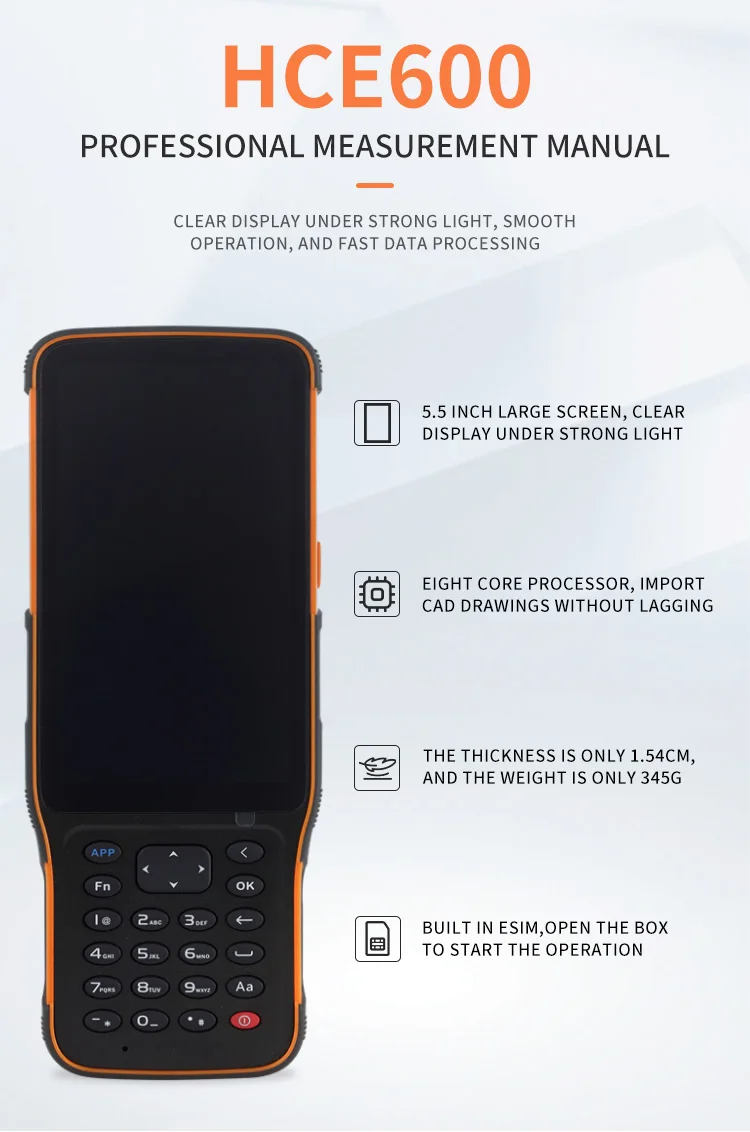

Handbook parameters	model	HCE600 Android Measurement Handbook
	The internet	4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
	operating system	Android 10
	CPU	Octa-core 2.0Ghz processor
	LCD screen	5.5'' HD display
	Battery	14 hours of battery life
	Waterproof and dustproof	IP68
