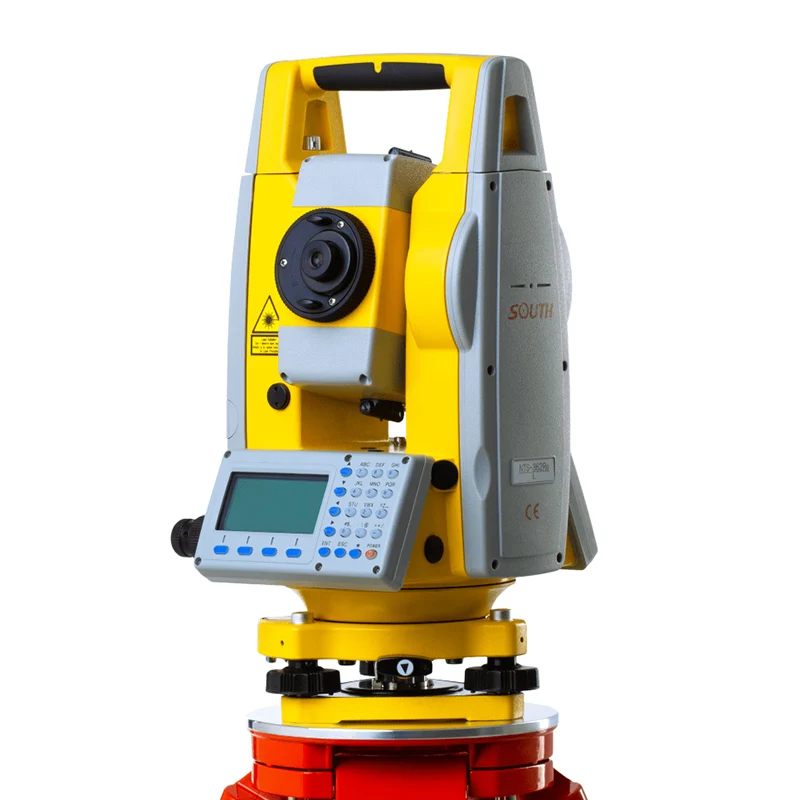

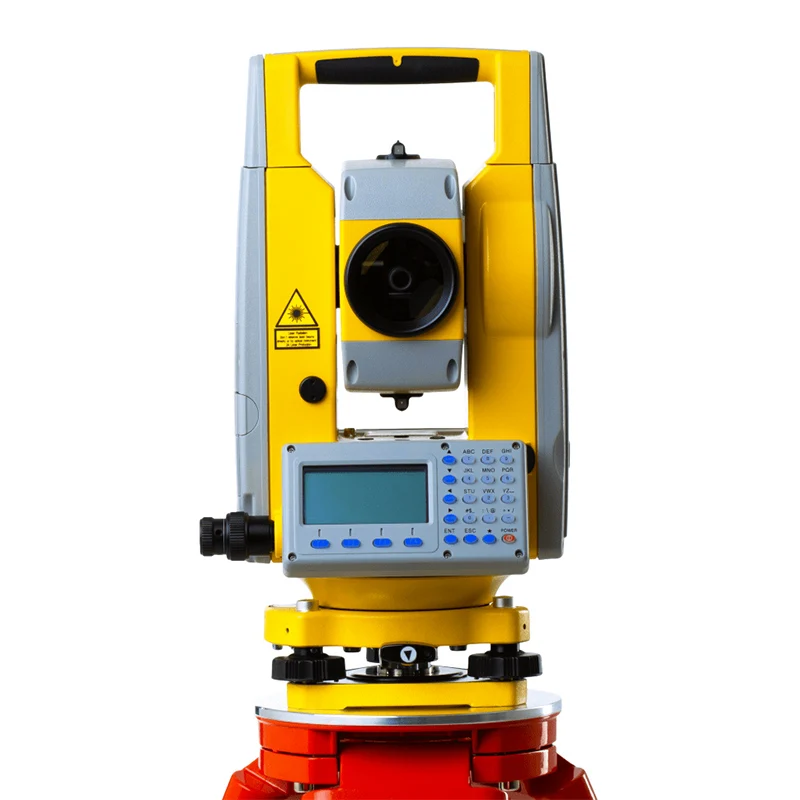

Universal Tripod Electronic Total Station Survey Machine Auto Correction

Brand Name : SOUTH

Model Number : NTS-362R8LNB

Place of Origin : China

MOQ : 1 set

Price : ＄1500.00

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : Robotic Total Station SOUTH NTS-362R8LNB

Customized support : OEM, ODM

Power : lithium battery

Weight : 6KG

Display : LCD Display

Accuracy: Non Prism : 2+2ppm

Accuracy : 2"

Operating time : 8 hour

Contact Now

Surveying Equipment SOUTH Total Station NTS-362R8LNB Automatic Total Station

Product Description
New ranging system, longer range, faster speed, the same vertical axis laser under the point of technology, more accurate alignment, full numerical + alphabetic keyboard, input faster, the latest circuit design, battery power consumption is lower, user-friendly design, easy to drive, excellent quality, intimate build
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Universal Tripod Electronic Total Station Survey Machine Auto Correction
Specification

Distance Measurement
Reflectorless
Series: 800m
Single Prism
Series: 5000m
Accuracy: Non Prism
3+2ppm
Accuracy: Prism
Series: 2+2ppm
Sheet
Series: 2+2ppm
Measurement Time
0.3s In Fine
0.1s In Tracking
Atmospheric Correction
Manual Input, Auto Correction
Prism Constant
Manual Input, Auto Correction
Temperature Correction
Sensor Reading, 0.2ppm Accuracy
Distance Reading
Max: 99999999.9999m Min: 0.1mm
Angle Measurement
Accuracy
N7 Series: 2"
Method
Absolute, Continuous
Disk Diameter
79mm
Detection Method
V: Quadruple, H: Quadruple
Angle Reading
Min: 0.1"
Telescope
Erect
Tube Length
154mm
Effective Aperture
48mm (EDM 50mm)
Magnification
30x
Field Of View
1°30'
Resolving Power
3"
Minimum Focus Distance
1.2m
Muitiple/Additive Constant
4 Brightness Levels
Keyboard And Display
Keyboard
Alphanumeric 28 Keys
Display
3.5 Inches, Color Touch
Resolution
640*480 dpi
Position
Face 1, Face 2
Operation System
Operation System
Windows CE 6.0
Processor
Intel PXA310
Memory
128M DDR, 512M NAND FLASH
Interface
WIFI
802.11
Bluetooth
Class II, V2.0+EDR
SD Card
Yes
Serial Port
Yes
Mini USB
Yes
Mirco USB
None
USB Flash Disk
USB OTG
SIM Card
None
Compensator
System
Liquid, Dual Axis
Working Range
±4'
Accuracy
1"
Plummet
Laser Plummet (Default)
Accuracy
±1.5mm @1.5m
Laser Brightness
Adjustable
Wavelength
630-670nm
Laser Class
Class 2 /IEC60825-1
Laser Power
<0.4mW
Optical Plummet (Optional)
Erect
Magnification
3x
Focusing Range
0.5m --
Field Of View
5"
Accuracy
1.5mm @1.5m
Battery
Type
Lithium
Voltage
7.4V
Operating time
8 hours
Vial
Plate Vial
30" /2mm
Circular Vial
8' /2mm
General
IP Rate
IP55
Temperature Range
-20°C -- +50°C
Dimension
200*190*330mm
Weight
5.5kg
Others
-
Others
-
Others
-
