38X Dumpy Optical Automatic Level Survey Measuring Instruments

Name: 38X Dumpy Optical Automatic Level Survey Measuring Instruments
Brand: FOIF
Price: 290 USD

China 38X Dumpy Optical Automatic Level Survey Measuring Instruments wholesale

Brand Name : FOIF

Model Number : DSZ1

Place of Origin : China

MOQ : 1 set

Price : ＄290

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Packaging Details : 35X25X20 cm

Product Name : Automatic Level

Warranty : 1 year

Temperature Range : -30℃～50℃

Magnification : 38X

Objective lens aperture : 50mm

error : 0.7mm

Sensitivity of circular : 10′/2mm

setting accuracy : ±0.3″

waterproof : IPX6

dustproof : IPX6

Contact Now

38X Dumpy Optical Automatic Level Survey Measuring Instruments

Overview

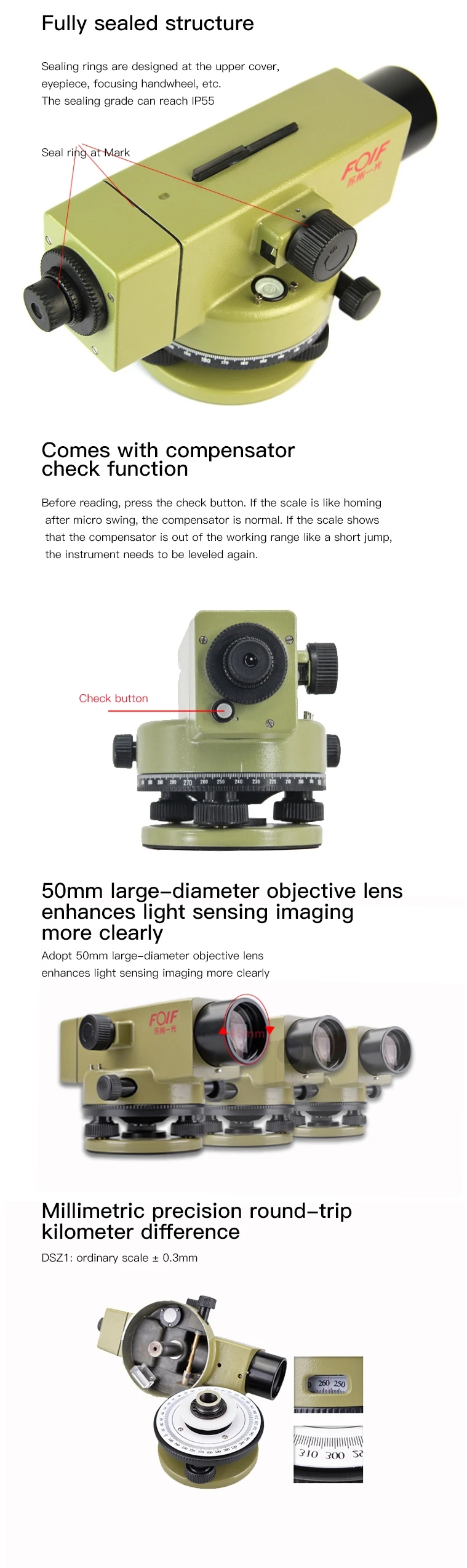

50MM large diameter objective lens
Significantly increase the amount of light into the image clearer
Waterproof and dustproof grade IP55
Sealing mechanism waterproof and dustproof
Compensator and other places with sealing ring, metal body, anti-drop wear-resistant, bad weather can still work.
Built-in reading disc Stable reading
Millimetre accuracy
Standard deviation of measurement per kilometre round trip ≤ 1mm
38X high-definition imaging
See farther and work in a wider range than ordinary level meter Longer distance measurement, clearer imaging

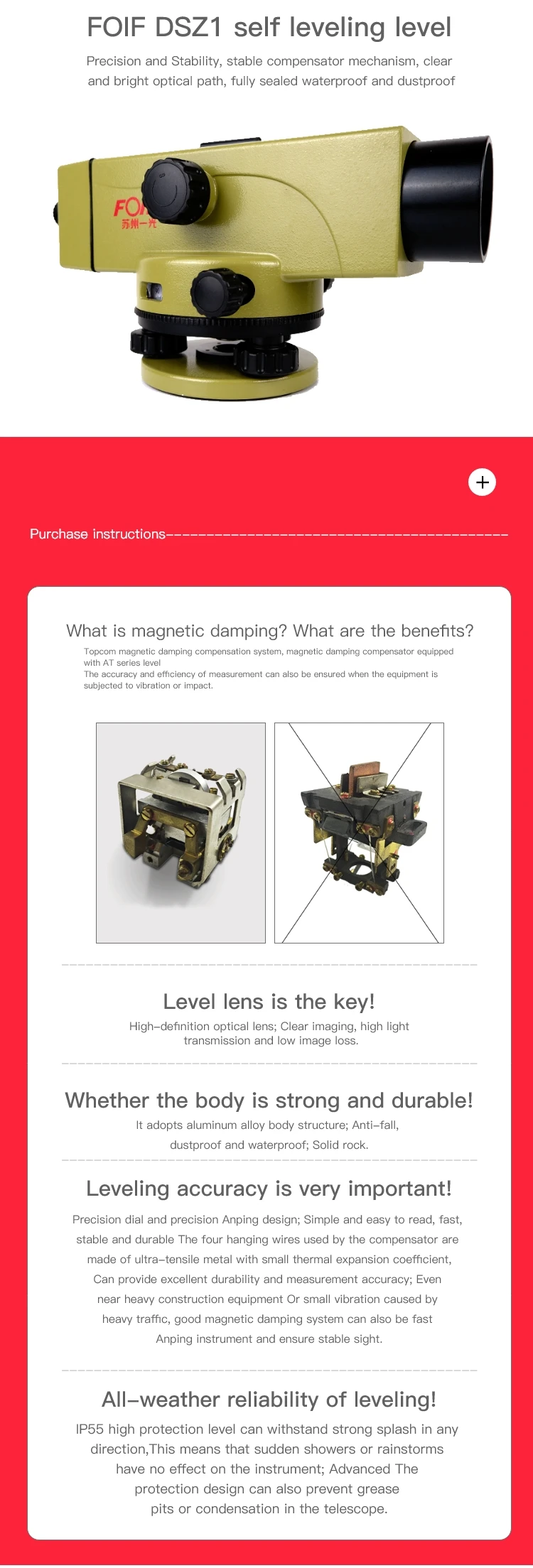

Copper high-precision compensator
Compensator is made of copper sheet with longer swing arm, anti-drop, stable measurement, and can guarantee the reliable working of the instrument.

Error	1mm
Magnification	38x
Diameter of the objective	50mm
Angle of field of view	1°20''
Shortest sighting distance	0.3M
Multiplication constan	100
Compensator range	±15'
Setting accuracy	±0.3''
Bubble accuracy	20''/2MM
Image	Erect
Warranty	1 year
Net weight	2kg

Products Description

38X Dumpy Optical Automatic Level Survey Measuring Instruments

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
